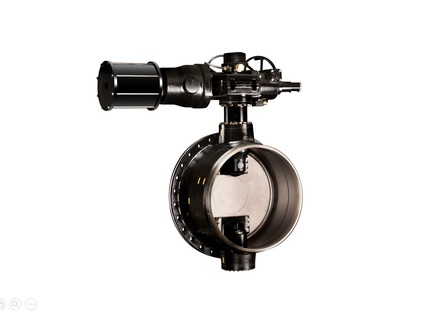

CLOSSIA (Butterfly valve)
Applications:
Nuclear power stations, reactor containment, applications requiring a quick closing time.
Almost all the nuclear power stations in operation or under construction are using valves provided by SEC-KSB.
Design:
Double-offset butterfly valve, metal/metal-seated, main-tenance-free. Carbon-steel body with one flanged and one weld-end connection. Safety actuator with manual, pneumatic or electric actuation; quick closing time.
Technical data:
p [bar] max. 10
DN 250/500/750/1,000
T [℃] -20 to +170
