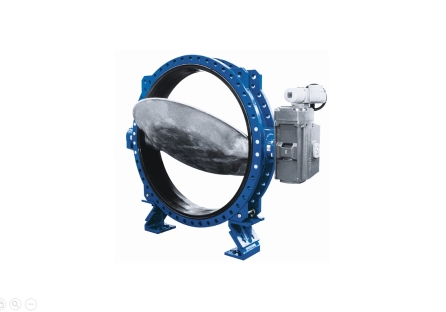

Mammouth (Butterfly valve)
Applications:
Nuclear power stations, water supply, water treatment, cooling circuits, firefighting systems.
Almost all the nuclear power stations in operation or under construction are using valves provided by SEC-KSB.
Design:
Centrered-disc butterfly valve with elastomer liner. With manual gearbox, electric, hydraulic actuator or counter weight. U-section/double-flanged body with flat faces (T5). EN, ASME, JIS connections possible.
Technical data:
p [bar] max. 25
DN 1,050-4,000
T [℃] 0 to +65
