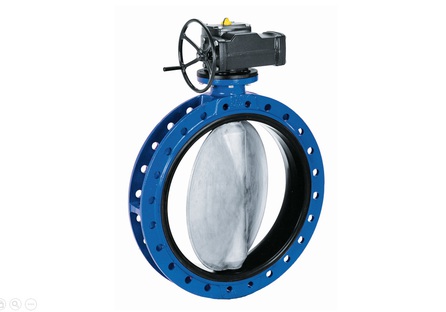

ISORIA (Butterfly valve)
Applications:
Shut-off service for liquids only.
Almost all the nuclear power stations in operation or under construction are using valves provided by SEC-KSB.
Design:
Centrered-disc butterfly valve with elastomer liner. With lever, manual gearbox, electric or hydraulic actuator. Semi-lug-type body (T2) or U-section body with flat faces (T5). Body types T2 and T5 are suitable for down-stream dismantling and dead-end service with counter-flange. EN, ASME, JIS connections possible.
Technical data:
p [bar] max.10
DN 32-1,000
T [℃] -10 to +130
