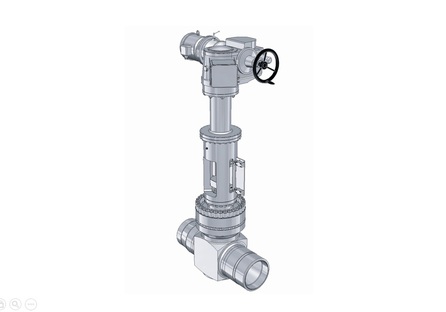

ZTN (Gate valve)
Applications:
Reactor cooling, safety feed, feed water, live steam, cleaning and condensate systems.
Almost all the nuclear power stations in operation or under construction are using valves provided by SEC-KSB.
Design:
Weld-end gate valve with bolted or pressure seal bonnet, forged or welded body, non-rotating stem, wedge-type or with parallel discs, made of carbon steel or stainless steel.
Actuators:
Hand wheel, electric, pneumatic.
Technical data:
p [bar] max. 320
DN 80-700
T [℃] max.+400
