High Current Density & Low Energy Consumption
At the rated current density of 15,000 A/m² and the rated operating pressure of 3.0 MPa, the direct current consumption is as low as 3.946 kWh/Nm³. Even at a high current density of 20,000 A/m², the direct current consumption is merely 4.046 kWh/Nm³, leading the industry.
High Hydrogen Production Volume & Excellent Mass Transfer
Under rated operating conditions, the hydrogen production volume is 300 Nm³/h (at 15,000 A/m²), and the maximum hydrogen production volume can reach 500 Nm³/h (at 25,000 A/m²). Leveraging its excellent gas - liquid mass transfer and thermal management technologies, it ensures safe and stable operation under ultra - high hydrogen production volumes.
Wide Load Range & Fast Response
The maximum operating adjustment range of the electrolyzer is 5%-167%, and the response speed is ±10%/s, which can meet the input of volatile renewable energy.

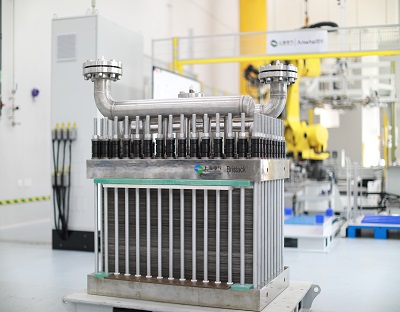

The Bristack®-P300 "PEM" electrolyzer, a product of the company, has successfully received the authoritative certification of TÜV Rheinland Germany. The product performance exceeds the requirements of the project contract and reaches industry-leading level. Moreover, the company has an annual production capacity of 200 MW PEM electrolyzers.
Shanghai Electric is dedicated to providing customers with an integrated system solution covering "production-storage-refueling-utilization". Since its establishment, it has achieved breakthroughs in multiple application fields such as green chemical engineering, hydrogen metallurgy, hydrogen transportation, and hydrogen energy storage.
The electrolysis efficiency of the PEM hydrogen production equipment can reach up to 98%. It has independently developed high - efficiency membrane electrodes, achieving the advantages of high current density, low power consumption; high hydrogen production volume, excellent mass transfer; wide load range, and fast response.
